Zhenghong Purification delivered a complete turnkey engineering solution for the Nanjing Zhong’ao Dental Clinic, perfectly demonstrating our top-tier professional expertise in the fields of dental CT shielding and implant surgery room purification.
Within an exceptionally short construction period of just 10 days, and without disrupting the clinic’s existing architectural structure, we successfully achieved a deep integration of a sterile medical environment with a rigorous ionizing radiation shielding system. This not only fulfilled high-standard clinical technical requirements but also smoothly passed the official final acceptance inspection.
Engineering Difficulties and Challenges
This project required us to simultaneously solve three uncompromising technical challenges within extremely tight time and space constraints:
- Extremely Strict Infection Control Standards: Dental implants involve invasive bone surgery; therefore, the operating room must establish an absolutely sterile, laminar flow cleanroom environment free from cross-contamination.
- High-Density Radiation Shielding and Safety Compliance: The newly added dental imaging CT room in the clinic generates ionizing radiation. A comprehensive lead shielding engineering project had to be implemented to not only ensure the operational safety of medical staff but also completely eliminate any radiation leakage to patients in the waiting area.
- Extreme Delivery and Rapid Retrofitting: Considering the clinic’s operational needs, the entire structural modification, cleanroom panel installation, radiation door deployment, and the final official disease control acceptance process had to be completed within an extreme 10-day window.
Customized Integrated Solution
Facing complex on-site constraints, Zhenghong Purification abandoned traditional piecemeal construction methods, adopting a deeply customized, fully integrated internal buildout solution tailored specifically for dental facilities.
The core engineering scope encompasses:
- Seamless Implant Operating Room Purification System: We constructed a modular wall and ceiling system utilizing medical-grade antimicrobial panels. Through precise installation, this design completely eliminates traditional hygiene dead corners, providing an exceptionally smooth physical surface that is easy to deeply disinfect, meeting the highest level of sterile operation standards.

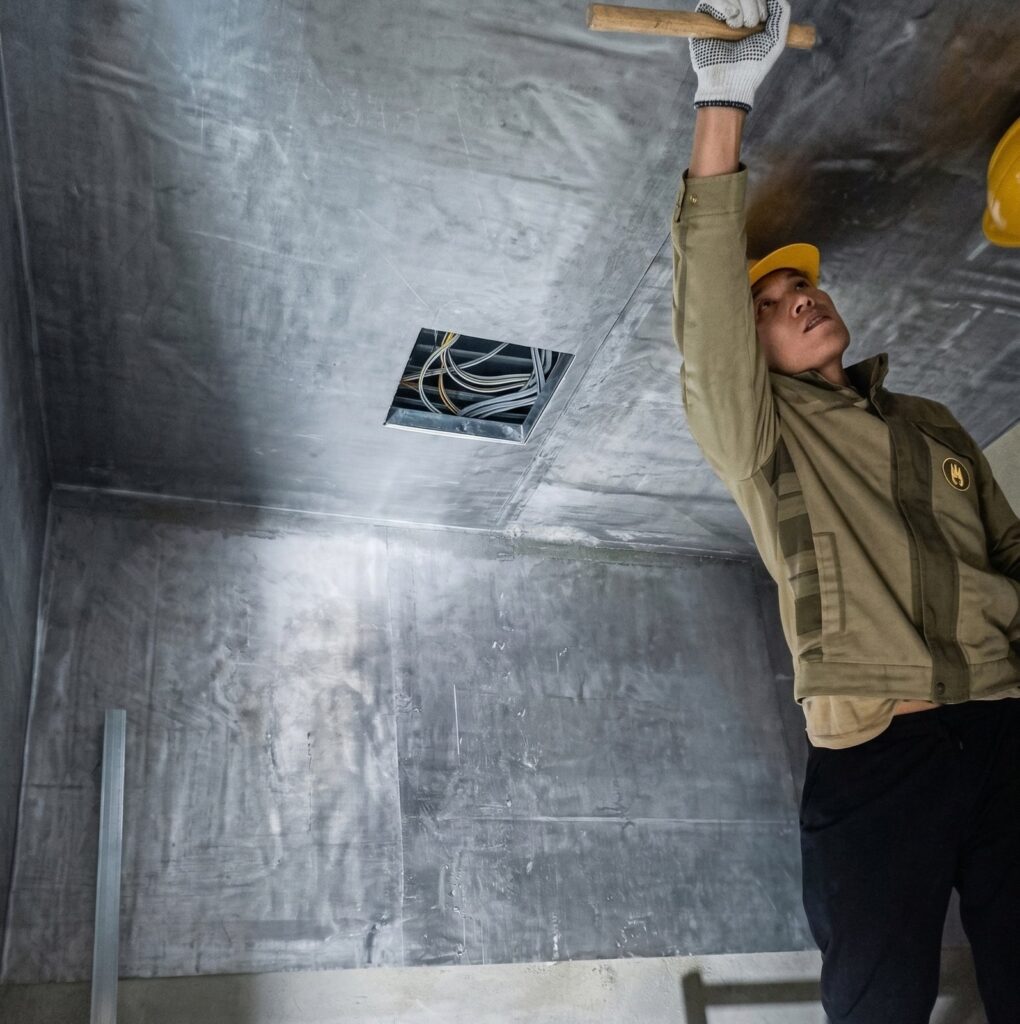

- Comprehensive Dental CT Shielding Package: For the imaging room, we implemented hexahedral protection using high-purity lead sheets. At the core, we customized and installed an automatic sensor radiation-shielded airtight sliding door with a 3.0mm Pb lead equivalent, and configured a fully flush-mounted radiation-shielded lead glass observation window with the same lead equivalent in the control area, achieving safe, zero-blind-spot intraoperative monitoring.
- Source Factory Turnkey Execution: From the internal prefabrication of heavy-duty door frames and the precise on-site hoisting of structural components to the final radiation leakage testing, all core building materials were manufactured in Zhenghong Purification’s own factory and directly deployed by our professional engineering team, achieving an absolute closed loop of accountability.
All components were manufactured in-house by Zhenghong and deployed by our professional engineering team to ensure continuity of accountability, reliable performance guarantees, and absolute zero-leakage compliance standards.
Specifications and Requirements
Airtight Door and Viewing System
- Zhenghong® Automatic Lead-Shielded Airtight Sliding Door (customized 3.0mm Pb protection equivalent).
- Fully flush-mounted high-lead glass observation window (zero visual distortion, zero dust accumulation design).
Structural Radiation Shielding
- Walls and Ceilings: Utilizing Zhenghong® high-purity electrolytic lead sheets, achieving a 3.0mm Pb lead equivalent.
- Floor Shielding: Laying a barium sulfate (BaSO4) radiation-shielding cement leveling layer.
- Surface Finishes: Seamlessly spliced medical-grade color steel antimicrobial cleanroom panels.
Automated Control
- Heavy-duty automatic door operator customized specifically to support heavy 3.0mm Pb lead doors.
- Equipped with anti-pinch safety light curtains and touchless activation (foot/hand sensors), ensuring sterile operation.
Compliance Assurance
Design and construction strictly adhere to the National Health Commission’s Provisions on the Administration of Radiological Diagnosis and Treatment

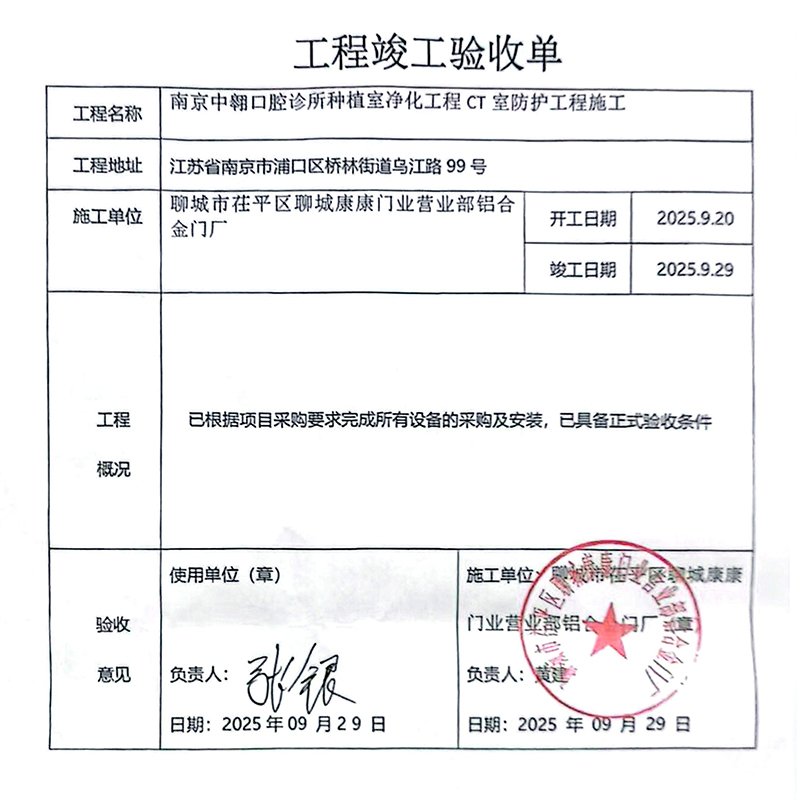

and relevant building codes.100% guaranteed to pass the initial official acceptance inspection.
Core Engineering Advantages
This project highlights the core strengths of Zhenghong’s turnkey approach:
- Seamless Retrofit: We safely integrated lead and barium sulfate shielding layers without disrupting the clinic’s existing architecture or workflow.
- Uncompromised Infection Control: The cleanroom finishes meet the highest clinical hygiene standards, providing a sterile environment for implant procedures.
- Streamlined Clinical Workflow: Custom automated door systems balance the heavy weight of lead shielding with touchless, safe operation for patients and staff.
- Long-Term Durability & Compliance: The zero-leakage shielding system is designed for high-frequency use, ensuring lasting regulatory compliance.
This project further establishes Zhenghong as a trusted one-stop partner for healthcare facilities, committed to transparency, engineering precision, and patient safety.
